Product Details

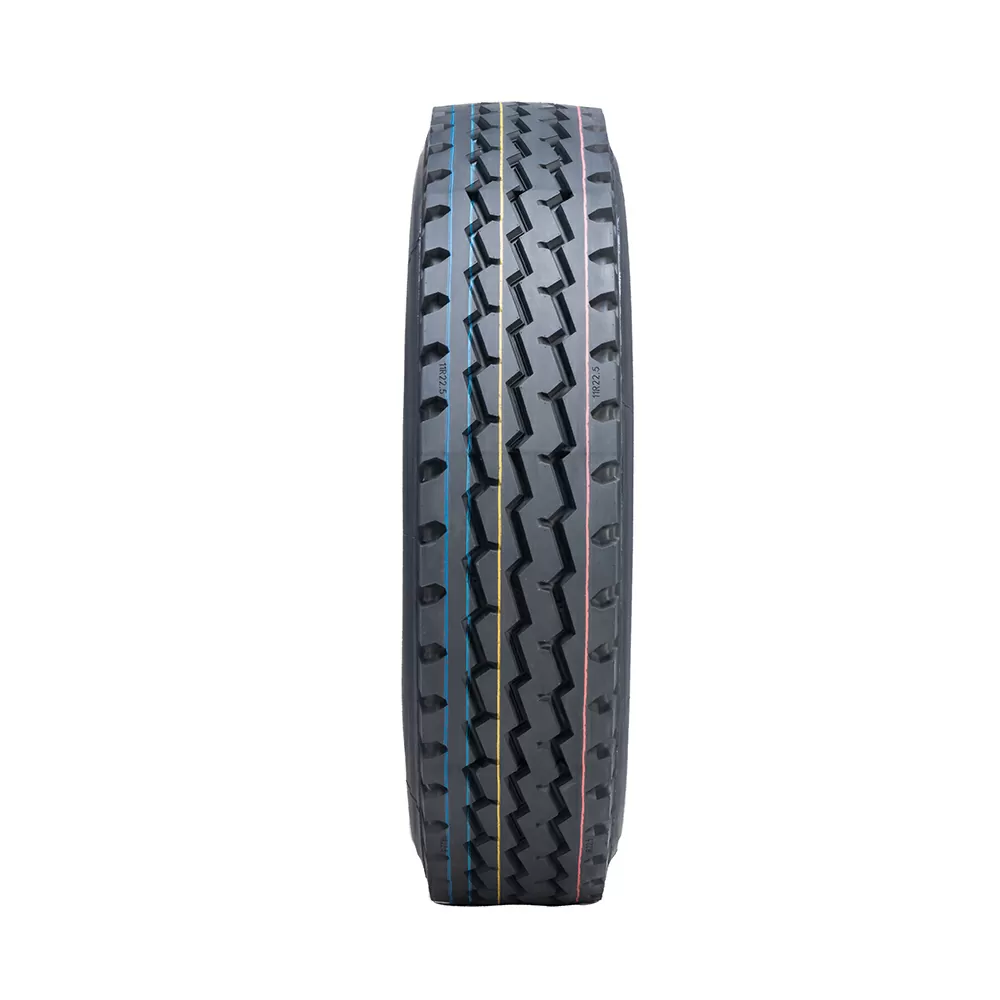

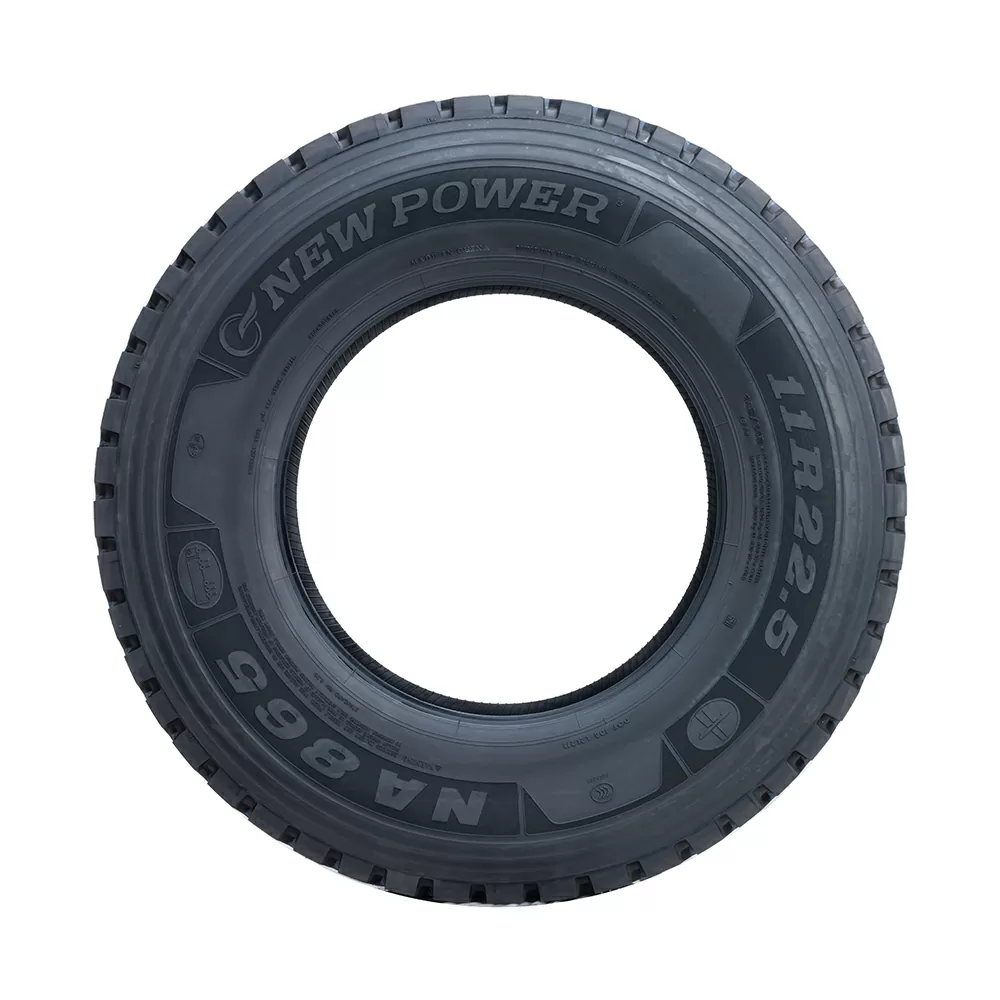

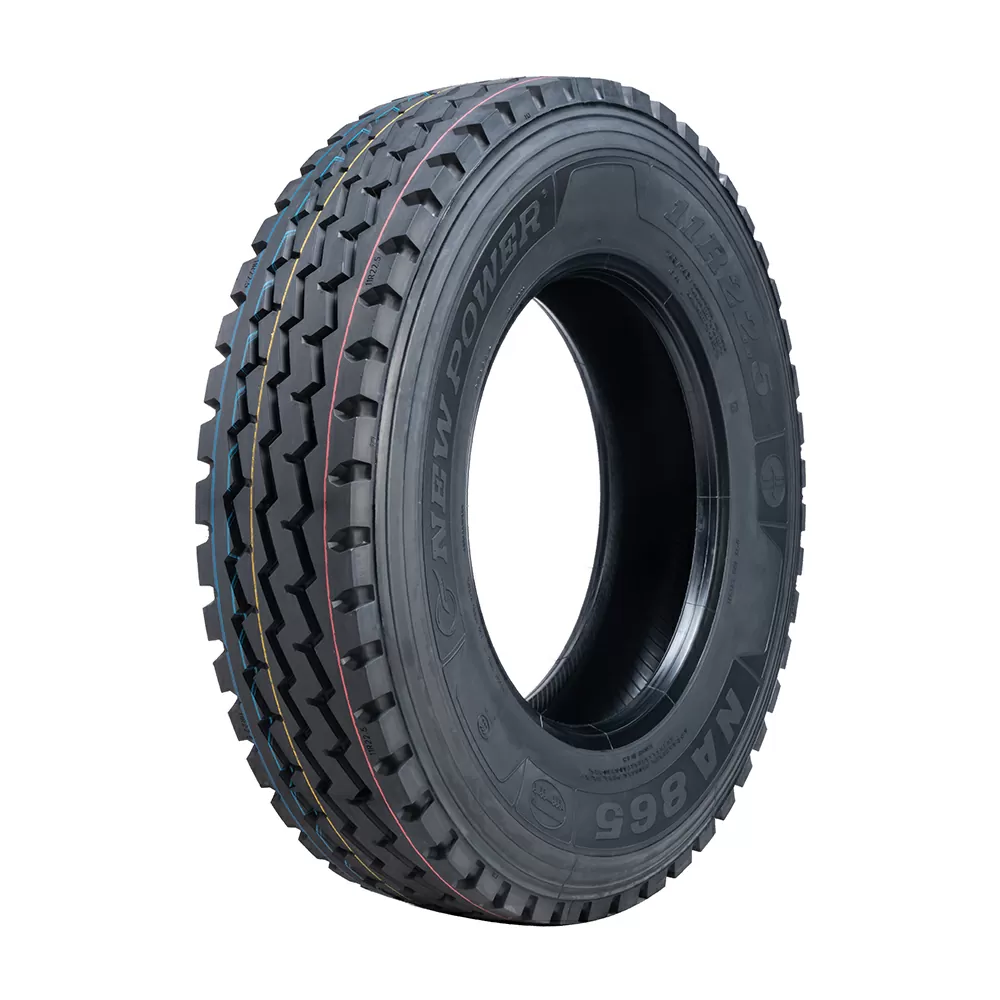

NA865

Newpower NA865 is the 4 belt super workhorse in the range, with heavy Load capacity this all positon tyre delivers the goods where other fade away.

11R22.5 18pr 146/143M 14.5mm Tread Depth

• Traditional tread design suitable for on & off road conditions.

• Suitable for Adverse Drive, Trailer & Steer applications.

• Designed with notched shoulder for Xtra grip off the road.

• Heat dissipation is enhanced through open tread voids, improving tread life in severe conditions.

• Optimized tread design that improves distribution of ground pressure in order to improve CPK results.

• Computer designed crown radius built to prevent eccentric tread wear and improved footprint.

• Optimized block-groove proportion for enhanced wear resistance.

Parameters

Features

  • 9.00 r20 The pattern is mainly composed of three main grooves
  • The open horizontal pattern on shoulders provides better driving force and grip and also improves the heat dissipation performance of tyres.
  • The product with adopts 4+2 super-strong bead structure, which has excellent bearing performance.
  • newpower tires Suitable for paved roads and unpaved roads.

Specifications

Tire Size Ply Rating Pattern Tread Depth (mm) Speed Rating Load Index Rim Section Width (mm) Load Capacity (kg) Inflation Pressure/kpa Tread Width (mm)
★12.00R20 18 NA865/NA865+ 17.5 K 154/151 8.5 315 3750/3450 830 238/226
12.00R20 18 NA865 15.3 K 154/151 8.5 315 3750/3450 830 238/226
★12.00R20 20 NA865 17.5 J 156/153 8.5 315 4000/3650 900 238/226
★11.00R20 18 NA865/NA865+ 17 J 152/149 8.0 293 3550/3250 930 223.4/211.4
★11.00R20 16 NA865+ 17 K 150/147 8.0 293 3350/3075 830 223.4/211.4
★10.00R20 18 NA865/NA865+ 16.5 J 149/146 7.5 278 3250/3000 930 214/204
9.00R20 14 NA865 15.5 K 141/139 7.0 259 2575/2430 790 195
9.00R20 16 NA865 15.5 K 144/142 7.0 259 2800/2650 900 195
8.25R16LT 16 NA865 13 M 128/124 6.50H 235 1800/1600 770 184
8.25R16LT 14 NA865 13 M 126/122 6.50H 235 1700/1500 670 184
7.50R16LT 14 NA865 13 M 122/118 6.00G 215 1500/1320 770 170/162
★7.00R16LT 14 KT865/LA865/NA865 11 L 118/114 5.50F 200 1320/1180 770 142
★7.00R16LT 12 KT865/LA865/NA865 11 L 115/110 5.50F 200 1215/1060 670 142
★315/80R22.5 20 NA865 15 K 157/154 9.00 312 4125/3750 900 232
315/80R22.5 18 NA865 15 K 154/151 9.00 312 3750/3450 830 232
11R22.5 18 NA865 14.5 M 149/146 8.25 279 3250/3000 930 214
11R22.5 16 NA865 14.5 M 146/143 8.25 279 3000/2725 830 214
